Four Antenna Diversity Wireless System U940

U940 reliable four channel wireless system, which is suitable for all kinds of strict nightclubs,KTV,small performances and other occasions.

Characteristic:
Professional antenna diversity wireless system,reducing signal blind sports, excellent anti-interference performance, super stable and reliable wireless system!
Dual 30 MHZ bandwith design, up tp 400 channels.
Auto scanning search frequency makes your installation and debugging more intelligent and simple.
With IR infrared automatic frequency matching function,just press the key,the transmitter can automatically synchronize the receiver’s working frequency.
The digital pilot technology is adopted, and each channel is provided with an independent ID code to prevent receiving wrong signals.
The receiver and transmitter are equipped with battery power display, and the working status is clear and easy to manage.
With professional digital electronic volume control, can be adjusted in 10 levels.

Technical parameter:
Receiver:
Frequency range:500-950 MHZ
Channel:200*2
Stability:0.002 PPM
Receive sensitivity:-105dB
Frequency response:60Hz-18KHz
S/N Ratio:＞105dB
Dyanmic range:105dB
Spur reduction:≥75dB
Output interface:bal and unbal
Power:12-18V DC/1000mA

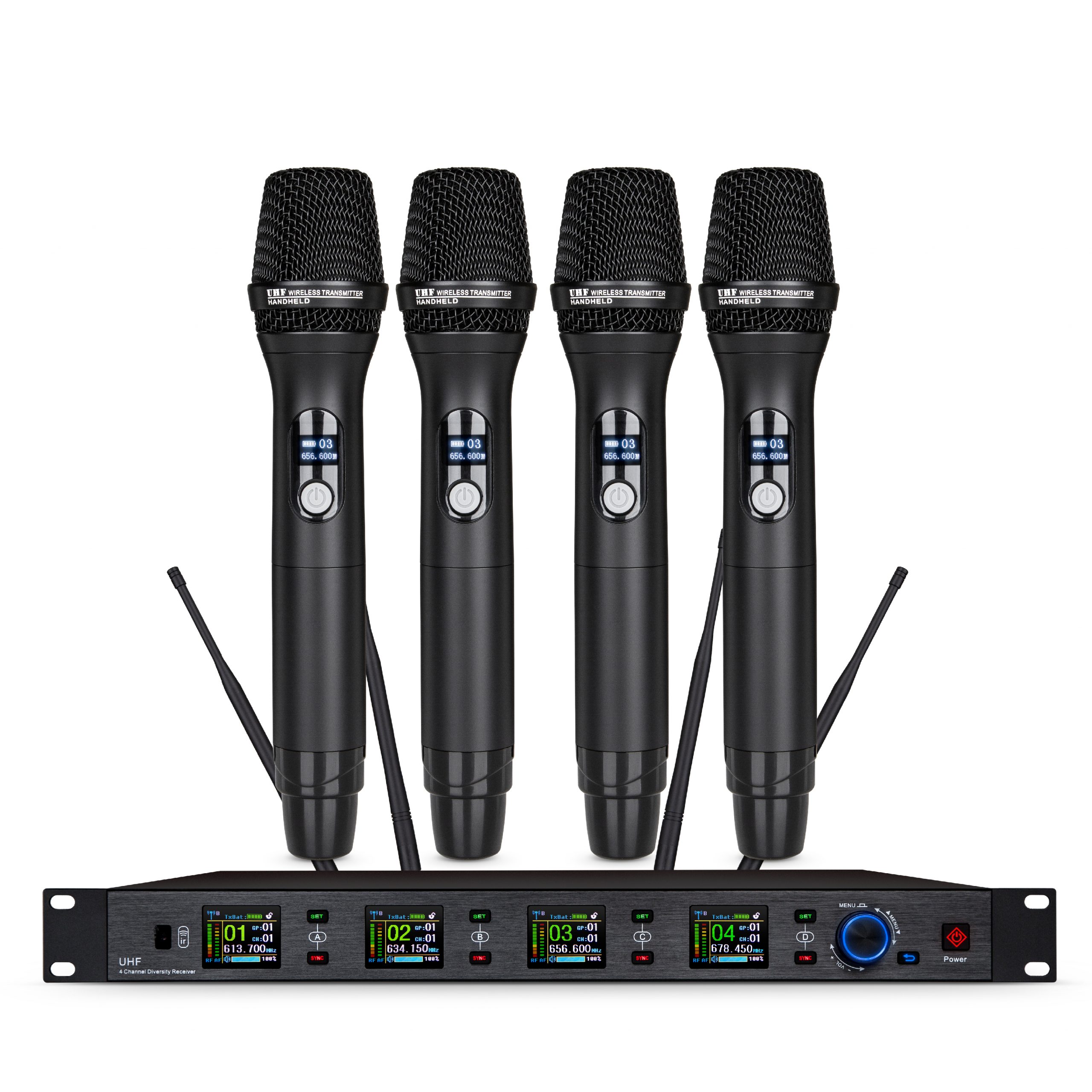

Handheld:
Frequency range:500-950 MHZ
Channel:400
RF Out:5/30 mW
Harmonic Suppression:＞-70dBc
Frequency width:60MHZ
Maximum deviation:±48 kHZ
Frequency response:60-15 kHZ
S/N Ratio:≥100 dB
T.H.D:＜0.5%
Input signal range:1V max
Power:2 X 1.5V（AA）
Battery life:10h

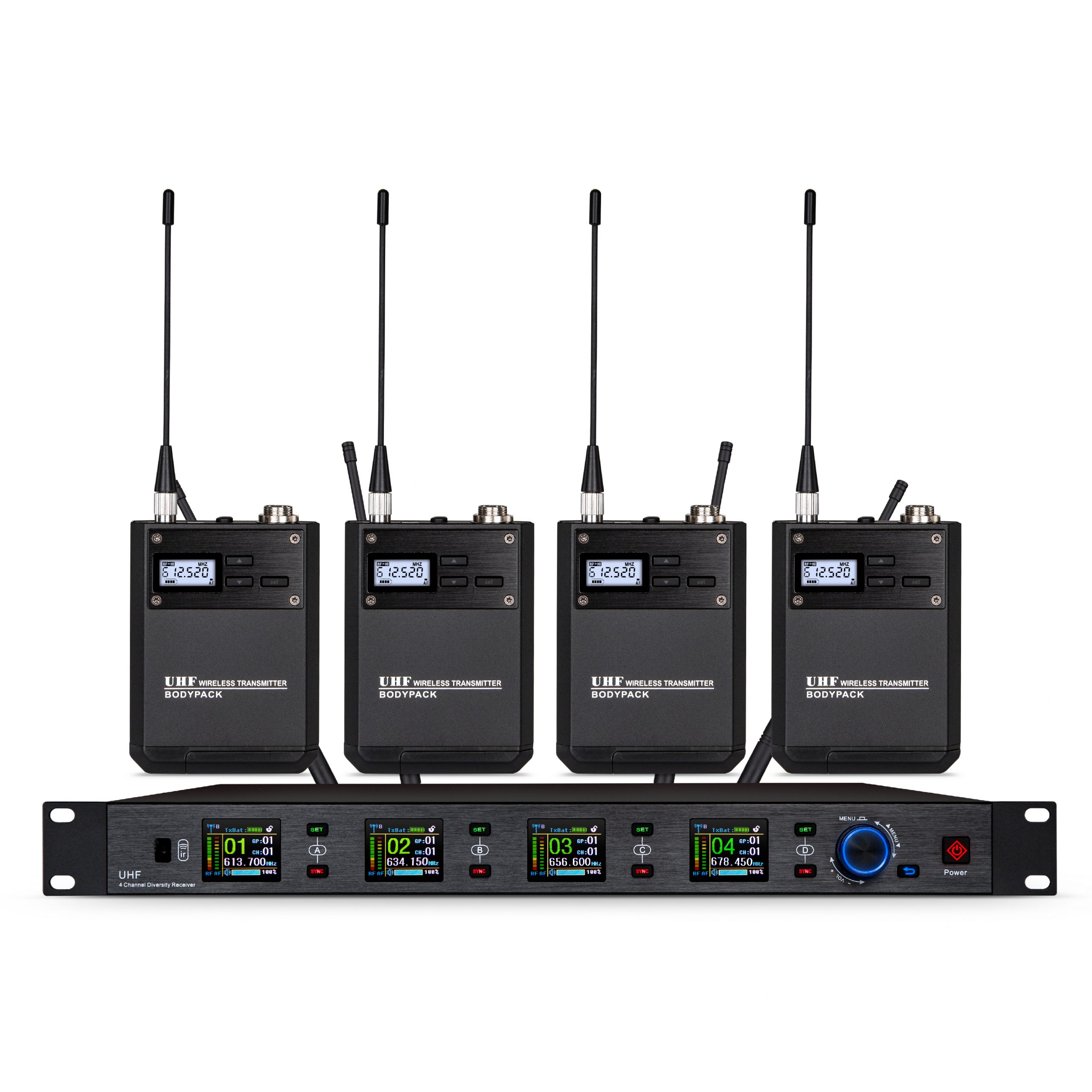

Body-pack:
Frequency range:500-950 MHZ
Channel:400
RF Out: 30 mW
Harmonic Suppression:＞-70dBc
Frequency width:60MHZ
Maximum deviation:±48 kHZ
Frequency response:60-15 kHZ
S/N Ratio:≥100 dB
T.H.D:＜0.5%
Input signal range:0.8 V max
Power:2 X 1.5V（AA）
Battery life:10h
